Food grade PVC material handling suction hose is made from premium quality PVC material with rigid PVC helix reinforcement. Superior product design -SUNGFORD series hoses are an industry standard for pneumatic material handling due to our specially engineered compound, innovative design and uncompromising quality control. Provides the ideal combination of light weight, flexibility and durability.

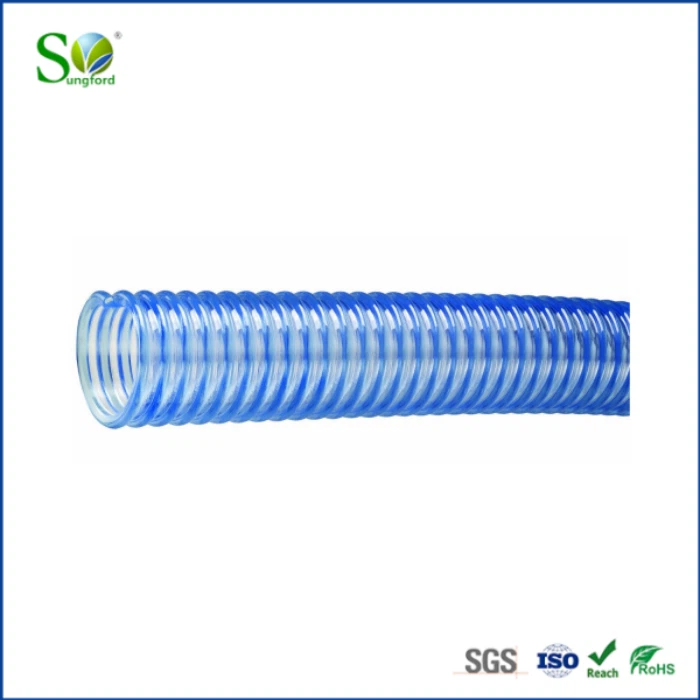

Corrugated food grade handling suction hose
Characteristics
Smooth outer cover and corrugated outer cover for choice.
Smooth outer Cover - Provides increased pressure rating and smooth surface for banding.
Corrugated outer cover - Counterclockwise helix makes it more flexibility and easy to bend.
Smooth interior wall make the transmission medium flow smoothly.
Food grade materials comply with applicable FDA requirements and ROHS, Phthalate Free.
Transparent construction: "See-the-flow"
Service temperature:-10° C to +65° C
Smooth food grade handling suction hose
Specifications
Remarks: The date sheet is only for reference, Inner diameter,outer diameter, thickness, weight,length can be customization as request.
|
I.D |
O.D |
W.P |
B.P |
Weight |
Length |
|||
|
in |
mm |
mm |
bar |
psi |
bar |
psi |
g/m |
m |
|
3/4 |
19 |
23 |
6 |
90 |
18 |
270 |
230 |
30 |
|
1 |
25 |
29 |
6 |
90 |
18 |
270 |
290 |
30 |
|
1-1/4 |
32 |
38 |
6 |
90 |
18 |
270 |
400 |
30 |
|
1-1/2 |
38 |
46 |
6 |
90 |
18 |
270 |
650 |
30 |
|
2 |
50 |
56 |
5 |
75 |
15 |
225 |
700 |
30 |
|
2-1/2 |
63 |
71 |
4 |
60 |
12 |
180 |
1170 |
30 |
|
3 |
75 |
83 |
3 |
45 |
9 |
135 |
1300 |
30 |
|
4 |
100 |
110 |
3 |
45 |
9 |
135 |
2300 |
30 |
|
5 |
125 |
137 |
3 |
45 |
9 |
135 |
3300 |
20 |
|
6 |
152 |
166 |
2 |
30 |
6 |
90 |
5500 |
10 |
|
8 |
200 |
214 |
2 |
30 |
6 |
90 |
6300 |
10 |
Applications
Transparent hoses allow the user visual confirmation of material flow, and the ability to see if material or condensation has collected in the hose tube. General applications include food grade liquids such as potable water, beer, wine and juice; food grade material handling - standard duty; material handling - standard duty; pharmaceutical product transfer; plastic processing equipment; pneumatic conveying equipment; poultry processing.
