PVC nylon braided hose is also called braided vinyl tubing,which is made by high quality PVC with high strength polyester cross reinforcement to make high working pressure, widely used for delivery of water,chemical,oil,air,etc.
PVC-nylon-braided-hose
Product Quick Details
1. Size (inner diameter): 4-75mm
2. W.P: 3-20Bar
3. B.P: 20-60Bar
4. Thickness: 1-10mm for customization
5. Color: Clear, Yellow, Red color etc.
6. Working Temperature: -10ºC to 65ºC
7. Package: 20/30/50/100M/Roll or customization
8. Original place: Weifang,Shandong,China
MOQ: 1000kg/1ton, FCL with other hoses is better for good prices and cost efficient.
PVC-braided-reinforced-hose
OEM & ODM Customization Production
Characteristics
PVC nylon braided hose is made with high-quality PVC and strong reinforced yarn,Acid&alkali / aging / stretching resistant.Strong peeling adhesion between yarn and inner-outer tube,Stable against kinking and twisting under work pressure.
Non-smell normal quality / food grade quality
High resistance to corrosion.
Extremely pure, soft to flexible, Bright color, light, and climate resistance, portable
Normal quality and food grade quality are all available.
Braided-PVC-hose-features
The following aspects, such as color, size, packing, printing all can be OEM as per requirement of customers.
Specification sheet
Any size and thickness of PVC nylon braided hose can be customized.
Customers usually send their own thickness or weight for inquiry.
|
INCH |
I.D.XO.D.(MM) |
LENGTH (M) |
WEIGHT (KG/ROLL) |
W.P.(BAR) |
B.P. (BAR) |
|
5/32 |
4X8 |
100 |
4.5 |
9 |
50 |
|
1/4 |
6X10 |
100 |
6.0 |
8 |
45 |
|
5/ 16 |
8X12 |
100 |
7.5 |
7 |
40 |
|
3/8 |
10X14 |
100 |
9.0 |
7 |
35 |
|
1/2 |
12X16 |
100 |
11.0 |
7 |
38 |
|
1/2 |
13X17 |
100 |
11.5 |
5 |
30 |
|
5/8 |
16X20 |
50 |
7 |
5 |
25 |
|
5/8 |
16X20 |
100 |
14 |
5 |
25 |
|
3/4 |
19X24 |
50 |
10 |
5 |
20 |
|
3/4 |
19X24 |
100 |
20.0 |
4 |
20 |
|
27/34 |
22X27 |
50 |
11.2 |
4 |
20 |
|
1 |
25X30 |
50 |
13.5 |
4 |
18 |
|
1 |
25X30 |
100 |
27 |
4 |
18 |
|
1-1/4 |
32X38 |
50 |
20.5 |
3.5 |
15 |
|
1-1/2 |
38X45 |
40 |
22.5 |
3.5 |
15 |
|
2 |
50X59 |
40 |
38.0 |
3 |
12 |
|
3 |
75x90 |
20 |
51 |
3 |
12 |
Applications
PVC nylon braided hose is and ideal hose for conveying water, oil, as under normal working condition in the factory, farm, ship, building and family. The braided tubing for foodstuffs is made of special materials. It is light, flexible, durable, non-toxic without odor, transparent. Good chemical and corrosion-resistance.
Food grade clear reinforced braiding vinyl tubing,Manufactured with FDA compliant material, can be used for conveying milk, distilled liquor, beer, jam and other foods in vending machines, ice machine and refrigerators, etc. For use in food and beverage lines, vacuum, coolant, hydraulic, and pneumatic lines.
Can be used in potable water applications.
Multifunctional-braided-hose

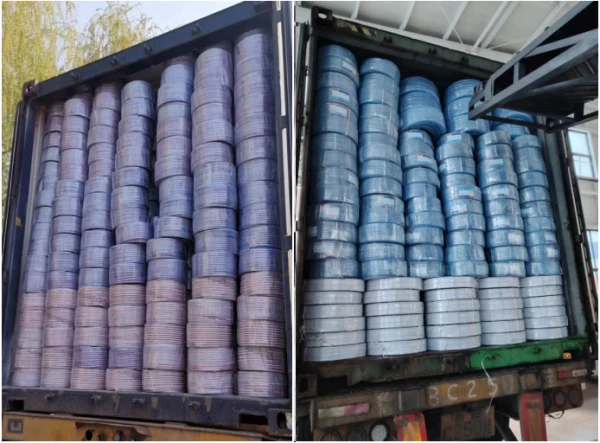

Packing And Delivery
Normal packing plastic film or woven bag, special packing can be as per customer request.
The delivery time is about 15days for 20ft and 20days for 40HQ.
Samples are always available.
Port of loading: Qingdao, CHINA
Braided-hose-packing-delivery
SUNGFORD Plastic Strength
PVC Nylon braided hose manufacturer, direct sale with competitive price.
Raw Material quality strictly checked before production
Various tests before shipping to make sure stable quality.
Very fast delivery time.
OEM is popular for our production.
Braided-hose-workshop
Certificate-test report
Precautions For Using
Be sure to use Clear PVC braided tubing within the specified temperature and pressure range.
The product used should be suitable for the loaded fluid. Please use it above its minimum bending radius.
- When applied to powders and granules, please enlarge its bending radius as much as possible to reduce the possible wear and tear on the hose.
- Do not use it in an extremely bent state near metal parts. ·
- Do not put the hose in direct contact with or near an open flame.
- Do not crush the pipe with a vehicle, etc.
- Please select a metal connector suitable for the hose size and its assembly.
The service life is largely affected by the characteristics of the fluid, temperature, flow rate, and pressure. If abnormal signs are found in the pre-operation inspection and regular inspection, please stop using it immediately and repair or replace with a new hose.
