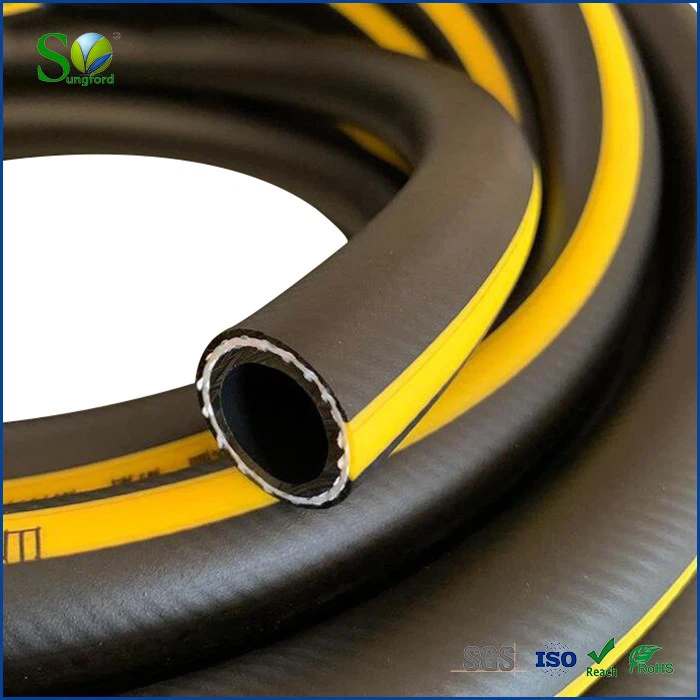

High pressure PVC air hose is made of 3 layers PVC or PVC&TPR with 2layers polyester reinforcement with higher working pressure 500-600psi by advanced technology from Germany.
High-pressure-PVC-air-hose
Product Introduction
|
Product Name |
Air Hose Tubing |
|
Material |
PVC with high strength Polyester Yarn Reinforced |
|
Medium |
Air, Water,Gas |
|
Burst Pressure(23ºC) |
1500-1800Psi |
|
Working Pressure(23ºC) |
500-600Psi |
|
Operating Temperature |
-10~70 ºC |
|
Brand |
SFLEX or OEM customer's brand |
Colorful-air-hose
Construction
Tube: Black, or any color flexible PVC or PVC&TPR.
Reinforcement: High tensile synthetic fiber spiraled.
3 layers-5layers-PVC-air-hose
Characteristics
This tubing is made of special PVC and rubber, three layers of inner tube,
Two high-strength polyester fiber reinforced layers, five layers structure, High pressure resistance performance is outstanding, wear resistance, oil resistance, acid and alkali resistance, corrosion resistance, aging resistance, not easy to break!Long service life, service cycle is more than 5 times that of ordinary PVC hose.
Application
High pressure air hose is suitable for various pneumatic devices, high pressure air compressors, engine parts, mechanical maintenance,engine parts mechanical maintenance, civil engineering high pressure air cannon tube and other aspects of compressed air delivery, It is also an ideal pipe for agricultural drug spraying and paint spraying etc.
Applicable temperature: -10℃~70℃
This tubing is the most common and economical choice for general air transfer applications. We using black or clear PVC compound as inner tube material for high thermal stability.
Hose-applications
Specifications
Refer to the chart with different thickness and size, special size & thickness can be customized as well.
Various sizes and colors are available.
|
I.D |
O.D |
W.P |
B.P |
MAX LENGTH |
|||
|
MM |
IN |
MM |
Mpa |
Psi |
Mpa |
Psi |
M |
|
5 |
3/16 |
11.5 |
4 |
600 |
12 |
1800 |
100 |
|
6 |
1/4 |
12 |
4 |
600 |
12 |
1800 |
100 |
|
8 |
5/16 |
14.5 |
4 |
600 |
12 |
1800 |
100 |
|
10 |
3/8 |
17 |
3 |
450 |
9 |
1350 |
100 |
|
13 |
1/2 |
22 |
3 |
450 |
9 |
1350 |
100 |
|
16 |
5/8 |
26 |
3 |
450 |
9 |
1350 |
100 |
|
19 |
3/4 |
30 |
3 |
450 |
9 |
1350 |
100 |
|
25 |
1 |
38 |
2 |
300 |
6 |
900 |
60 |
|
32 |
11/4 |
45 |
2 |
300 |
6 |
900 |
30 |
|
38 |
11/2 |
52 |
2 |
300 |
6 |
900 |
30 |
Packing And Delivery
1. Palstic film wrapped with label attached
2. Woven bag wrapped
3. Customized carton box looks high grade.
4. Colorful paper card on the rolls of packing.
5. Pallet loaded
Packing-delivery-air-hose
